MR80-200G
Spout Filling & Capping Machine

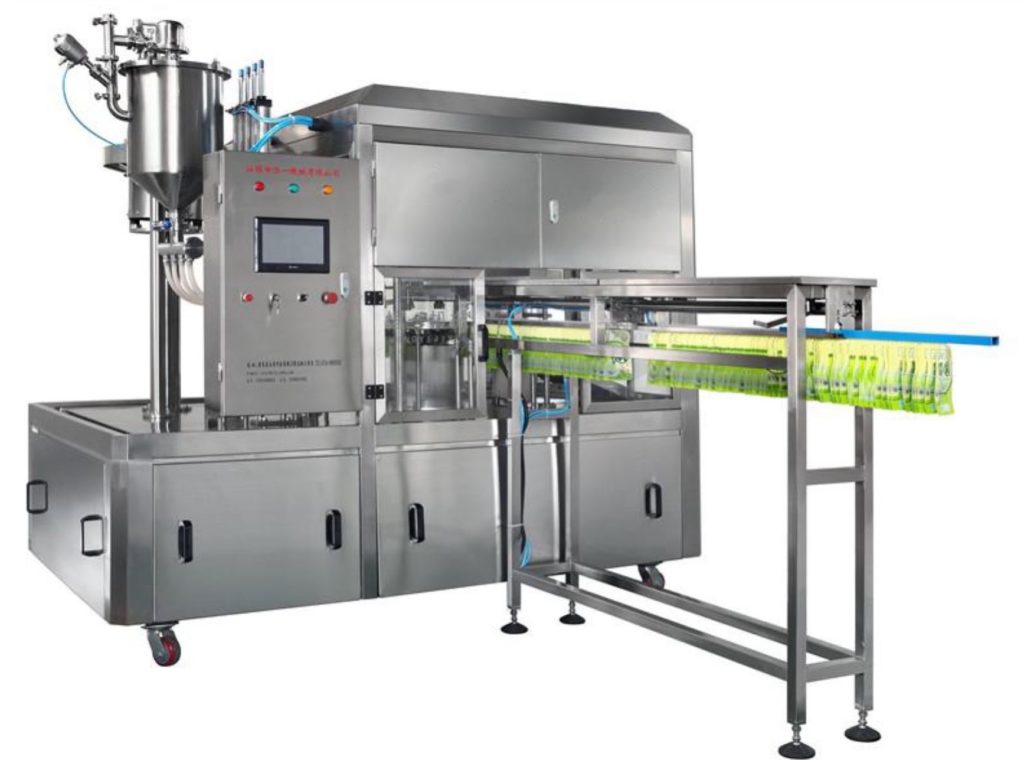

Middle Spout Filling & Capping Machine MR8-200G
Capacity Up To 70 BPM
Packing Caliber Φ8.6mm / Φ10mm
Filling Volume 200 – 500ml
Nozzle Number 4
The machine adopts pneumatic, mechanical drive and “PLC” Control combination.
Automatic quantitative filling, high accuracy, no splash, no leakage.
Capping device to make degree of tightness appropriate.
Features
- The machine adopts pneumatic, mechanical drive and PLC Control combination.
- Automatic quantitative filling, high accuracy, no splash, no leakage.
- Capping device to make degree of tightness appropriate.
- Increase tempered glass dust-free cover and with air purifier.
- The parts in contact with food use 304 stainless steel and the turntable is also made of 304, sanitary, neat and bright.
- The frame is made of stainless steel, out-covered with 304 sanding plate.
- Each machine is manufactured by our professional workers.
- Each machine undergoes a strict inspection before leaving storage.
- Each machine uses a large amount of 304 stainless steel.
- Each machine uses good quality electrical components.
Parameter
| MR80-200G | |
|---|---|
| Nozzle Number | 4 nozzles |
| Bag Type | Spout pouch (stand-up with spout) |
| Capacity | 700-1000 bags/hour |
| Caliber | Φ8.6mm / Φ10mm |
| Filling Volume | 200-500ml |
| Power | 220V 50Hz 2kw |
| Machine Size | 1800×1500×1800mm |
| Air Consumption | 0.6-0.8m³/min |
| Air Pressure | 0.6-0.8MPa |
Capacity & Filling Volume depends on the product status and filling weight.
Packaging Process
- Auto Pouch Feeding —— Feed spout pouches into the machine automatically.
- Auto Dosing Filling —— Fill the pouches with the required amount of product.
- Auto Spout Cleaning —— Clean the spout area before capping.
- Auto Cap Feeding and Inserting —— Caps are fed and inserted with a cap elevator.
- Auto Cap Screwing —— Adopt one motor unified control torsion for consistent tightening.
- Discharging —— Auto control processing for finished product output.
