RPC Series

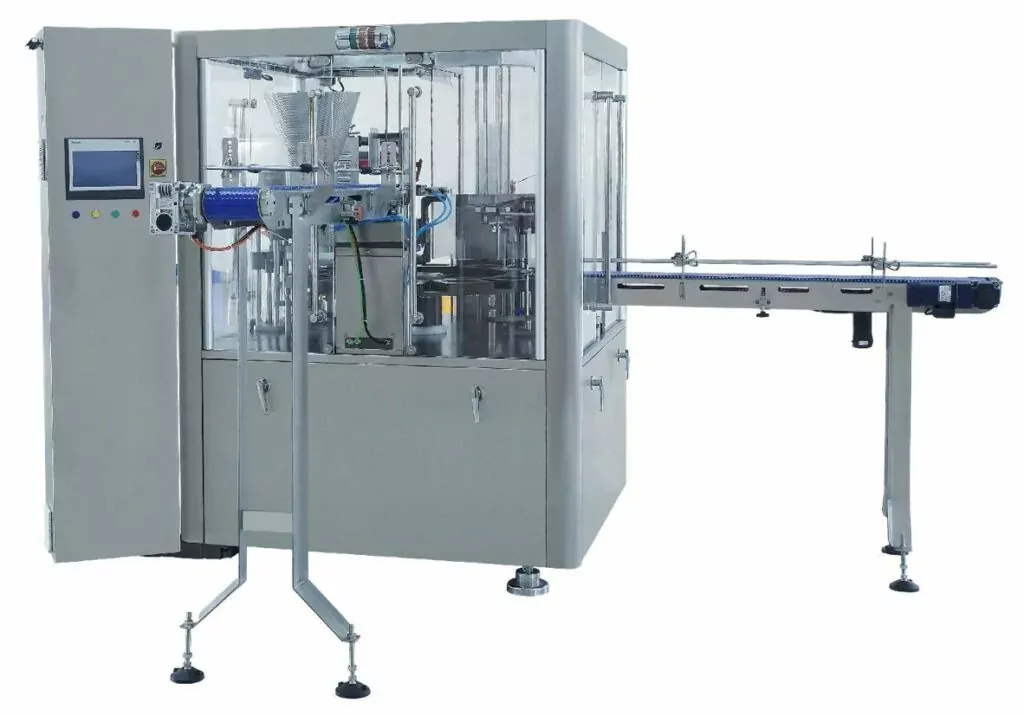

Automatic Tray Filling & Capping Machine
Automatic Tray Filling & Capping Machine
Capacity Up To 90 BPM
Container Size 170 mm
Filling Volume 5 – 2500g
Thickness 140mm
RPC Series Automatic Tray Filling & Capping Machine with storage cup design for reduced labor, stable cup dropping, and easy changeover.
Features
- Safe: Safety Door + Safety Relay + Bleed Valve
- Simple: Open driven system, easy maintenance
- Stable: Full mechanical driven design
- Easy changeover: almost no tool
- Easy clean: Open space, no dead corner
- Easy operation: jog to see machine condition and one button start
Parameter
| RPC-60 | RPC-60X | RPC-60-2 | |
|---|---|---|---|
| Capacity | up to 55fill/min | up to 50fill/min | up to 90fill/min |
| Container Size | diameter: 170mm thick: 140mm | diameter: 170mm thick: 140mm | diameter: 100mm thick: 170mm |
| Total Power Consumption | 3.5kw | 3.0kw | 3.0kw |
| Dimension | 3500 * 2900 * 2000mm | 3300 * 3000 * 2010mm | 3500 * 3200 * 1800mm |
| Compress Air Requirement (supply by user) | 0.2m³/min | 0.2m³/min | 0.6m³/min |
Capacity depends on the product status and filling weight.
Capacity & Filling Volume depends on the product status and filling weight.
Tray Style
Advantages
- Storage cup design reduce labor feed cup

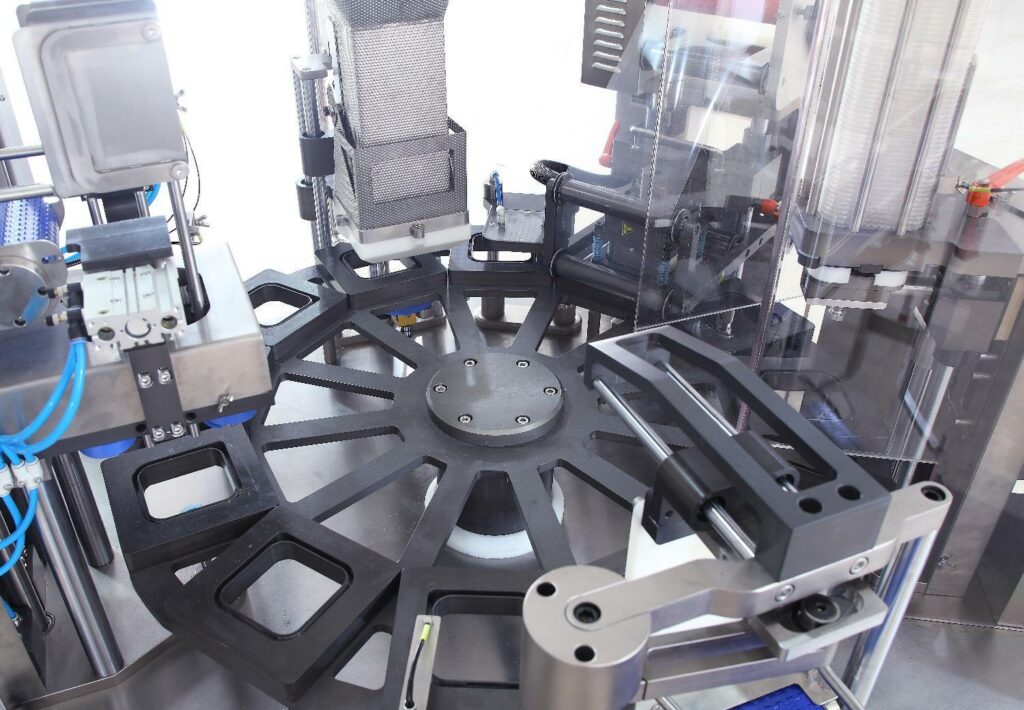

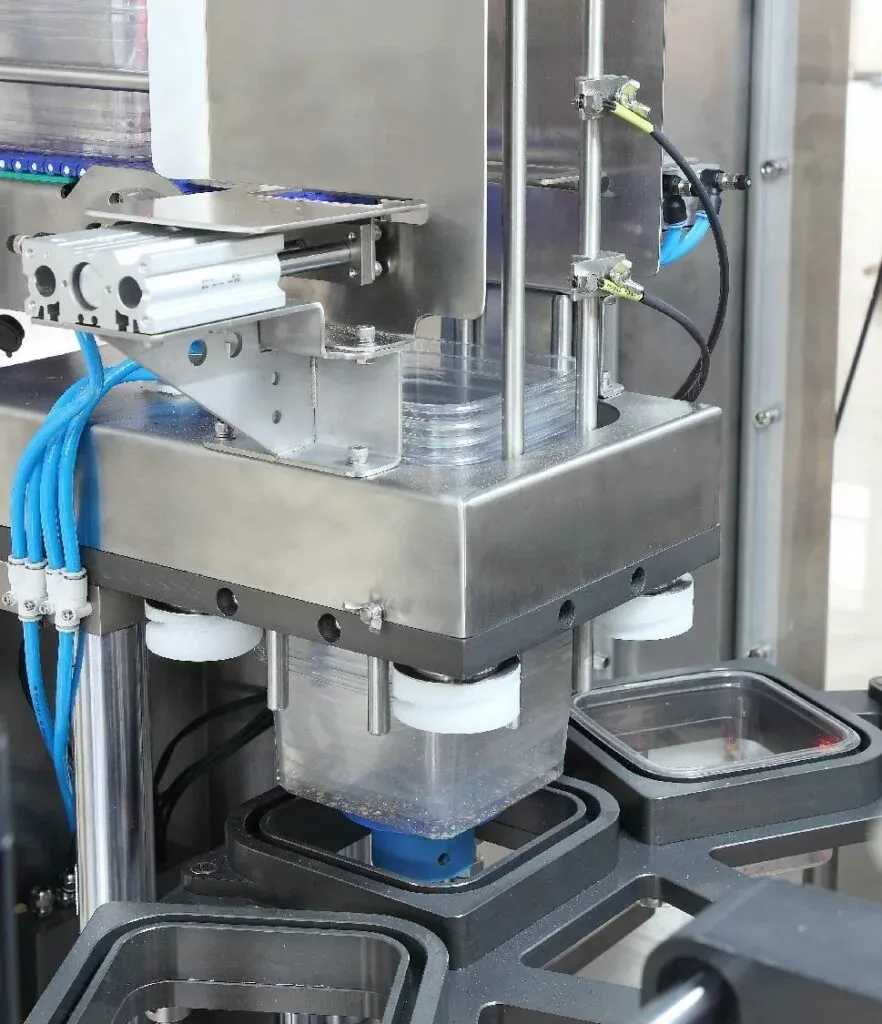

- Stable cup dropping with the entire mechanism capable of being replaced as a set.
- No need to adjust parameters for different speeds.
- Easy changeover mould, almost no tool
- The feeding mechanism ensures no overflow during material loading, and the discharge nozzle can be easily disassembled without tools for easy cleaning.
- Compared to cylinder out of the cup, more stable.
