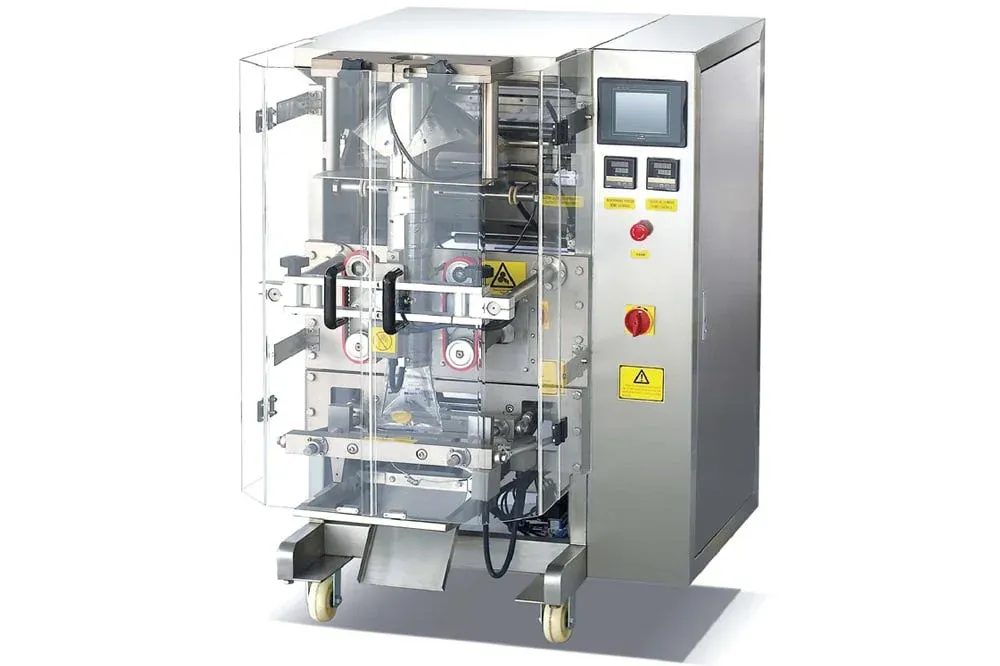

EC-420/520/720

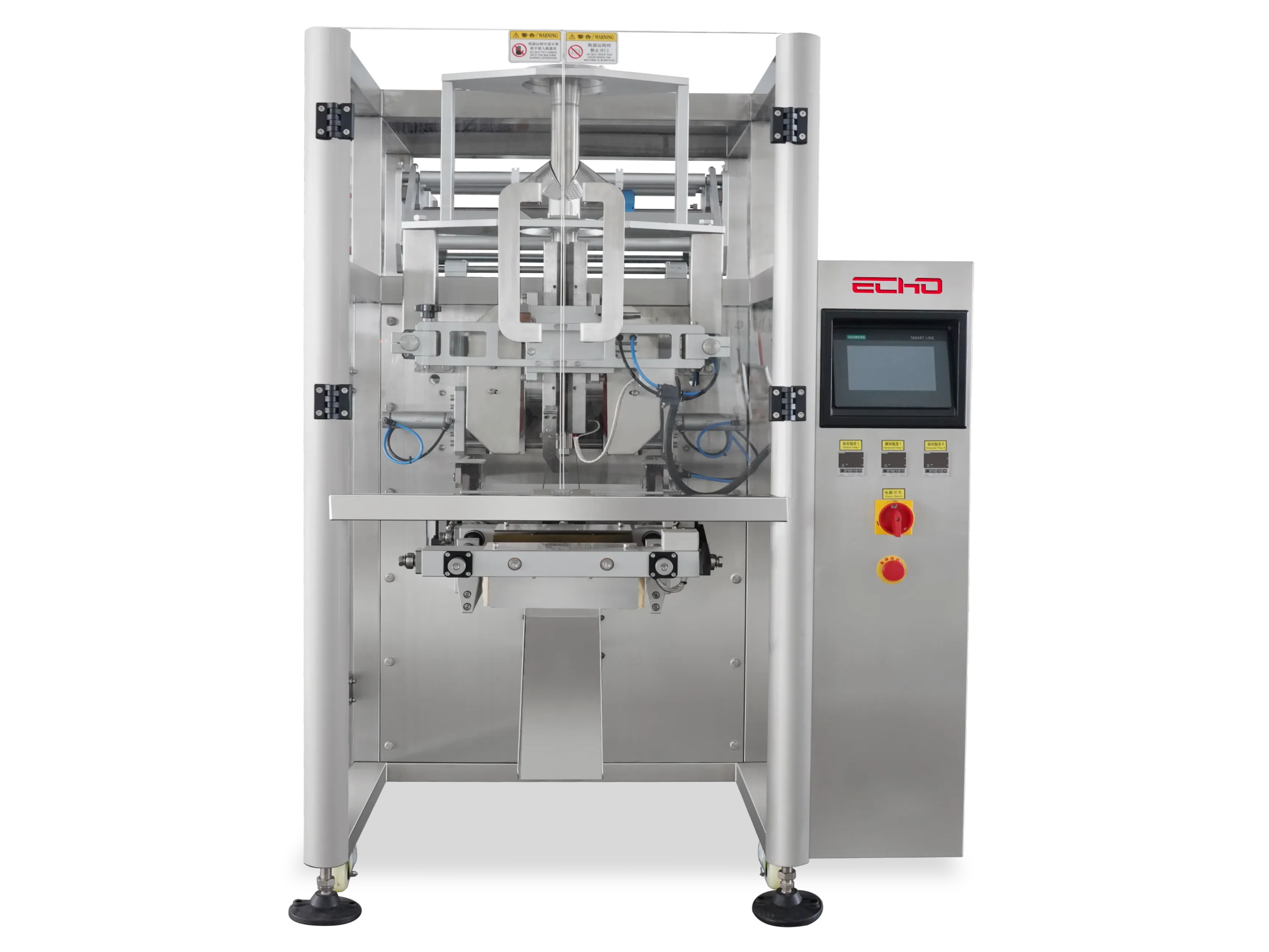

Vertical Form Fill & Seal Machine
Vertical Form Fill & Seal Machine / Vertical Packing Machine
Capacity Up To 60 BPM
Bag Width 50 – 350mm / 2 – 13.8in
Measuring 150 – 6000ml
Bag Length 80 – 400mm / 3.1 – 15.8in
Vertical Form Fill & Seal Machine(VFFS or Vertical Packing Machine) adopts advanced technology, which is a high-quality & high-capability automatic packaging machine. It includes automatic feeding, weighing, bagging, sealing, date printing and output.
Features
- With feeding and metering equipment, feeding, metering, filling, sealing, date printing, charging (exhaust), counting, finished product conveying and other functions all in one.

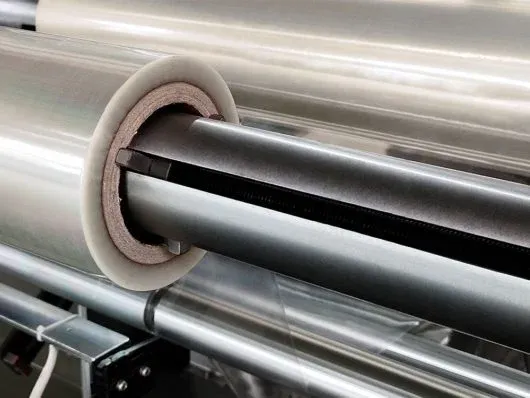

- It can stock ten types of rollstock, simple to change variety.

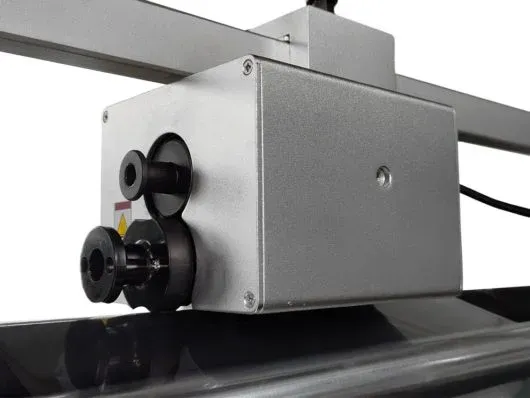

- Servo motor drawing film, position accurately.
- PLC computer system, the function is more stable, adjusting any parameters doesn't require stopping the machine.
- Independent temperature control system, precision reaches ±1℃, suitable for various mixed films, PE film packing material.
Parameter
| EC-420 | EC-520 | EC-720 | |
|---|---|---|---|
| Bag Width | 70-200mm | 120-280mm | 200-350mm |
| Bag Length | 80-300mm | 80-350mm | 80-400mm |
| Measuring Range | 5-1000ml | 50-2000ml | 150-6000ml |
| Filling Speed | 30-60bags/min | 20-40bags/min | 15-30bags/min |
| Film Width | Max 420mm | Max 520mm | Max 720mm |
| Total Power | 220V 3kw | 220V 3.2kw | 220V 3.5kw |
| Weight | 450kg | 500kg | 650kg |
| Dimension | 1200×900×2000mm | 1300×1000×2200mm | 1400×1100×2400mm |
| Packing Type | 3-side seal, 4-side seal, pillow bag, gusset bag | 3-side seal, 4-side seal, pillow bag, gusset bag | 3-side seal, 4-side seal, pillow bag, gusset bag |
Capacity & Filling Volume depends on the product status and filling weight.
Bag Style
- Liquid —— Detergent, Yellow rice wine, Soy sauce, Rice vinegar, Juice, Tomato paste, Peanut paste, Fruit paste, Chili sauce, Bean sauce, etc.
- Granule —— Crystal MSG, Granule medicine, Capsule, Seeds, Raw Chemistry material, Sugar, Chicken essence, Melon seed, Nuts, Pesticides, Fertilizer, Feed, etc.
- Powder —— Flavoring, MSG, Milk powder, Glucose, Washing powder, Raw chemistry material, White sugar, Pesticides, Fertilizer, etc.
