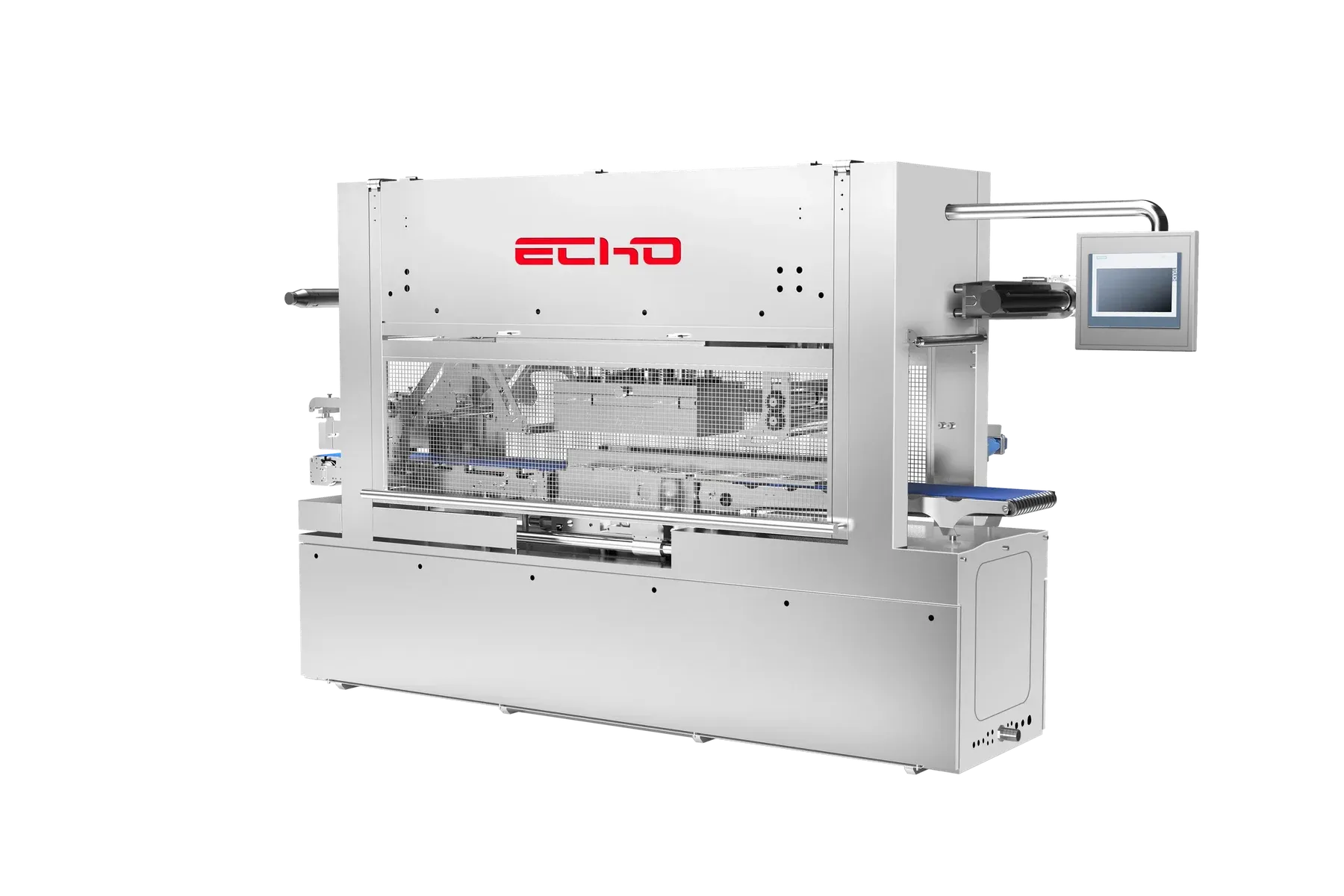

TA-350

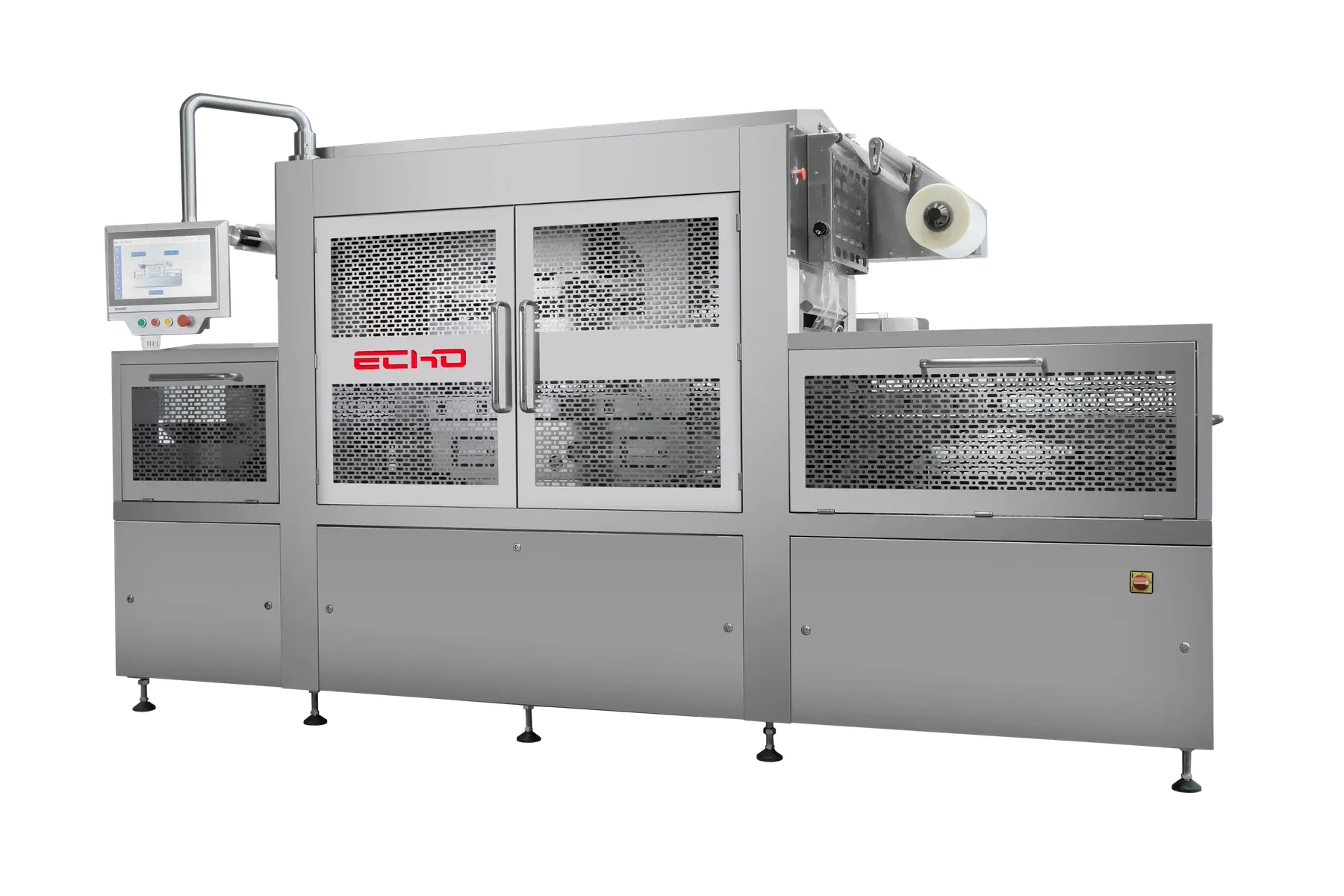

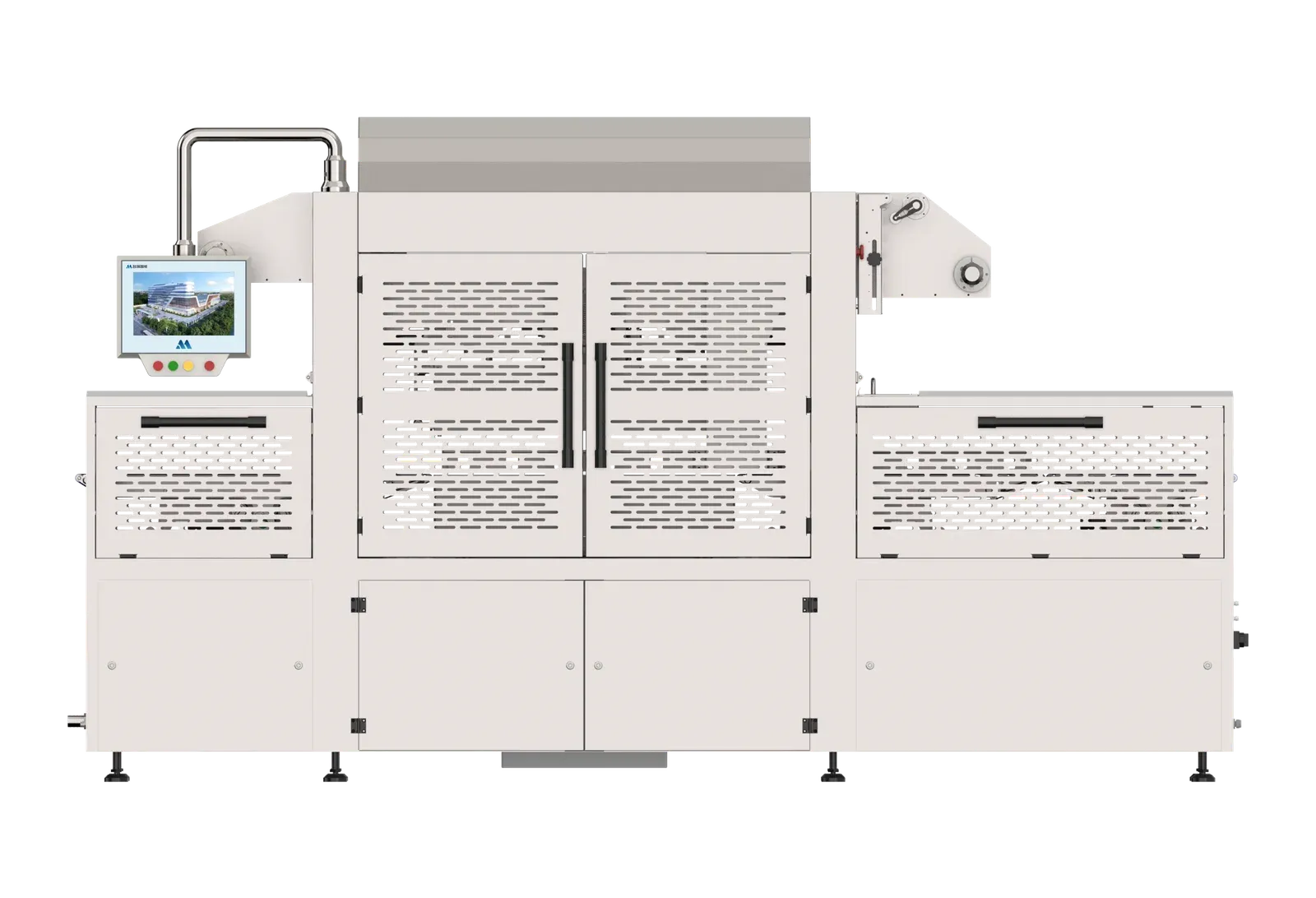

Automatic Tray Sealing Machine
Automatic Tray Sealing Machine
Capacity Up To 12 CPM / 4 Trays/Cycle
Max Size 620*380mm / 24.4*15in
Tray Height 10-120mm / 0.4-4.7in
Sealing Width 150-350mm / 5.9-13.8in
Fully intelligent system control, easy to access the production line and switch parameters.
There are two modes for sealing: pressure mode and time mode, can be freely selected.
Features
- Fully intelligent system control, easy to access the production line and switch parameters.
- There are two modes for sealing: pressure mode and time mode, can be freely selected.

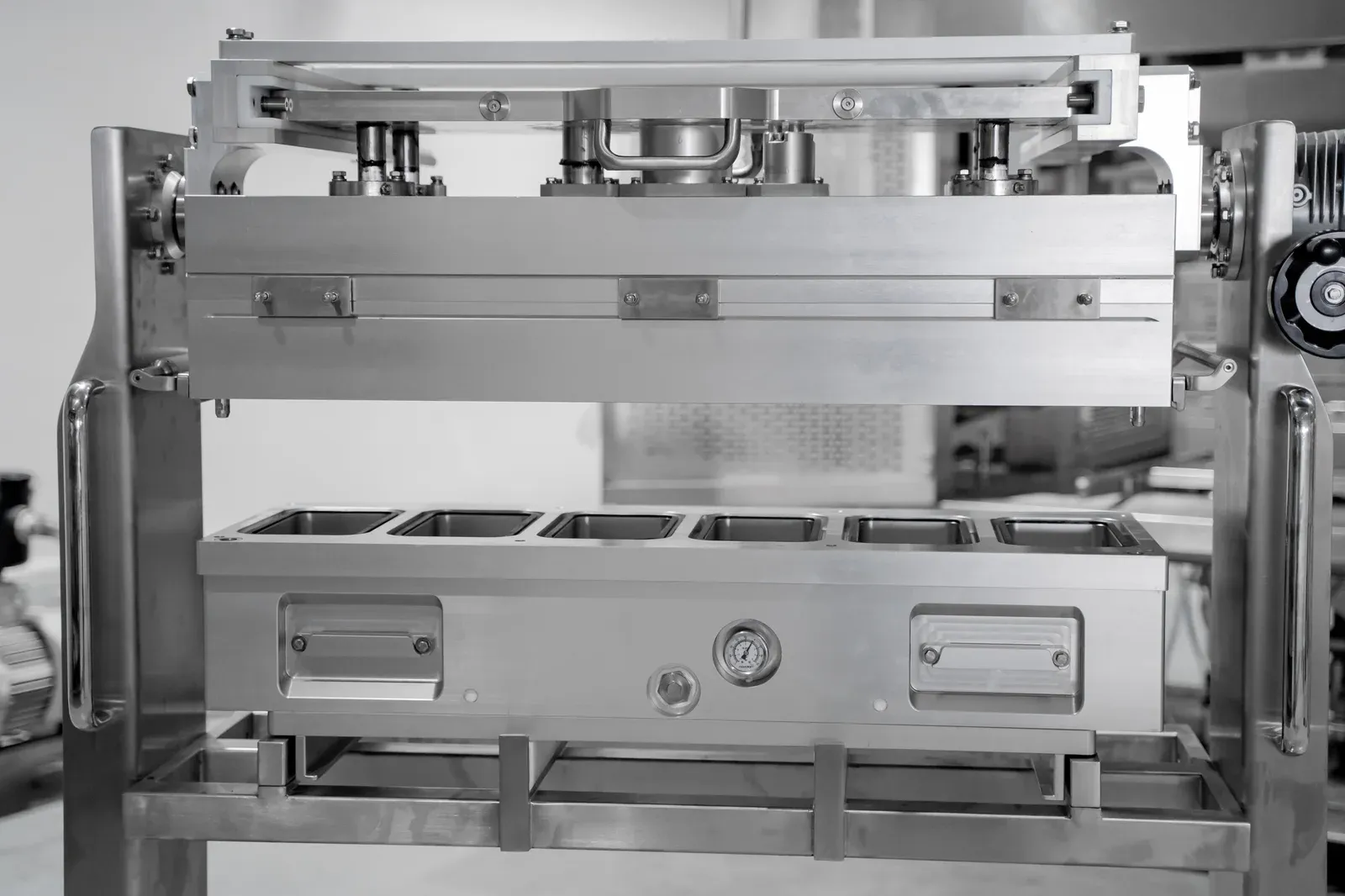

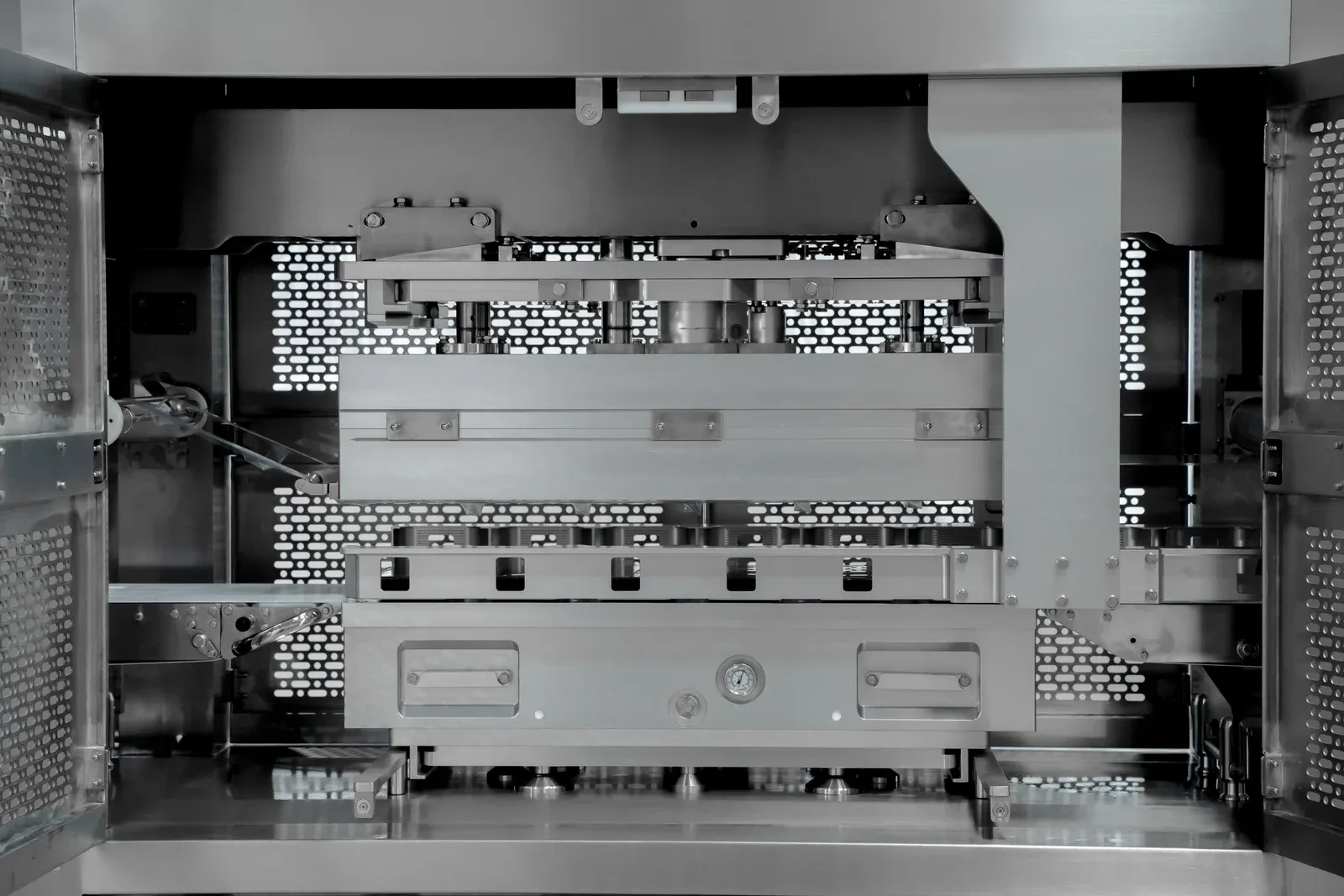

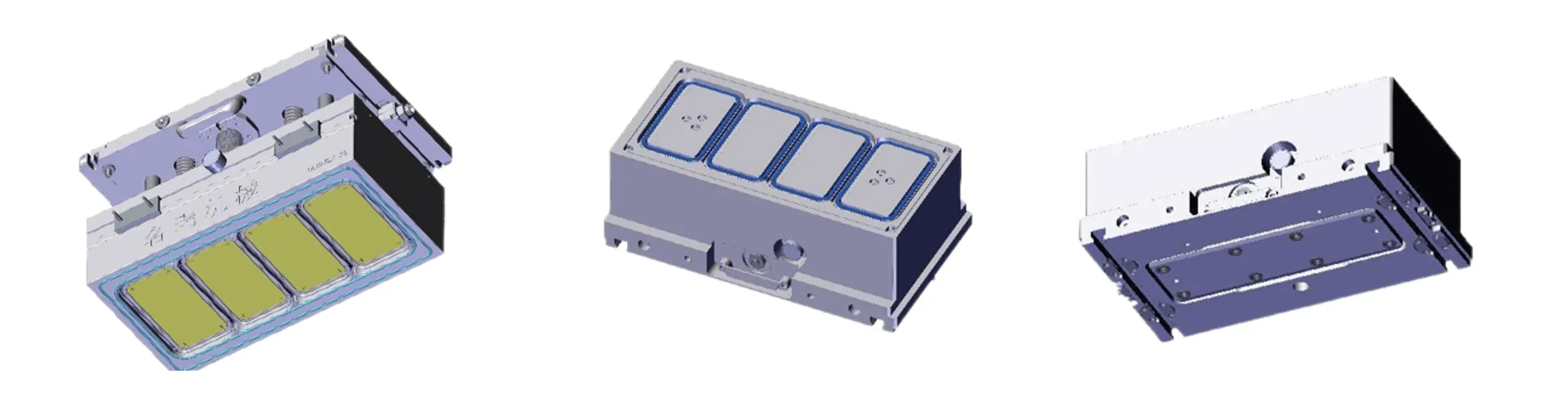

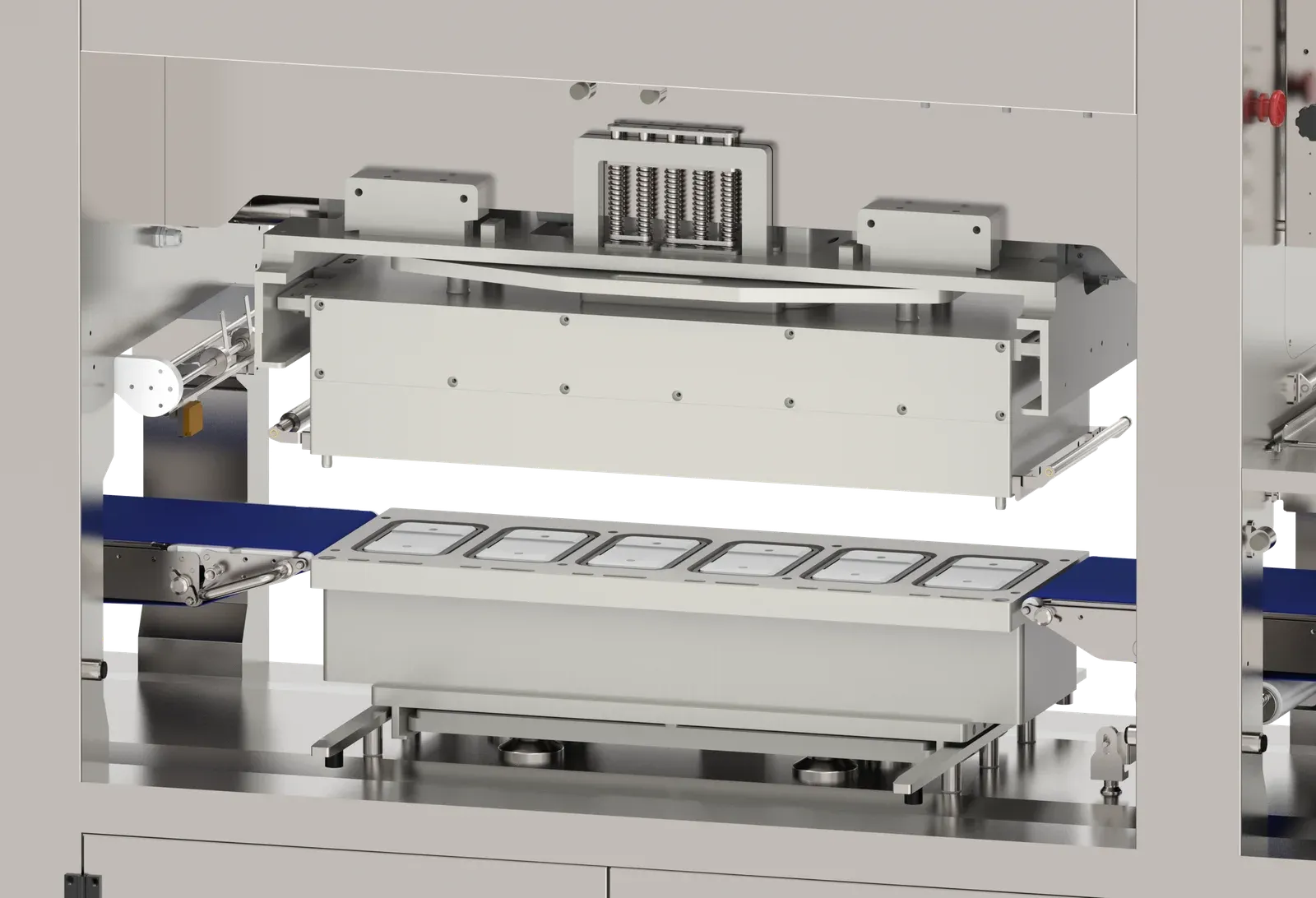

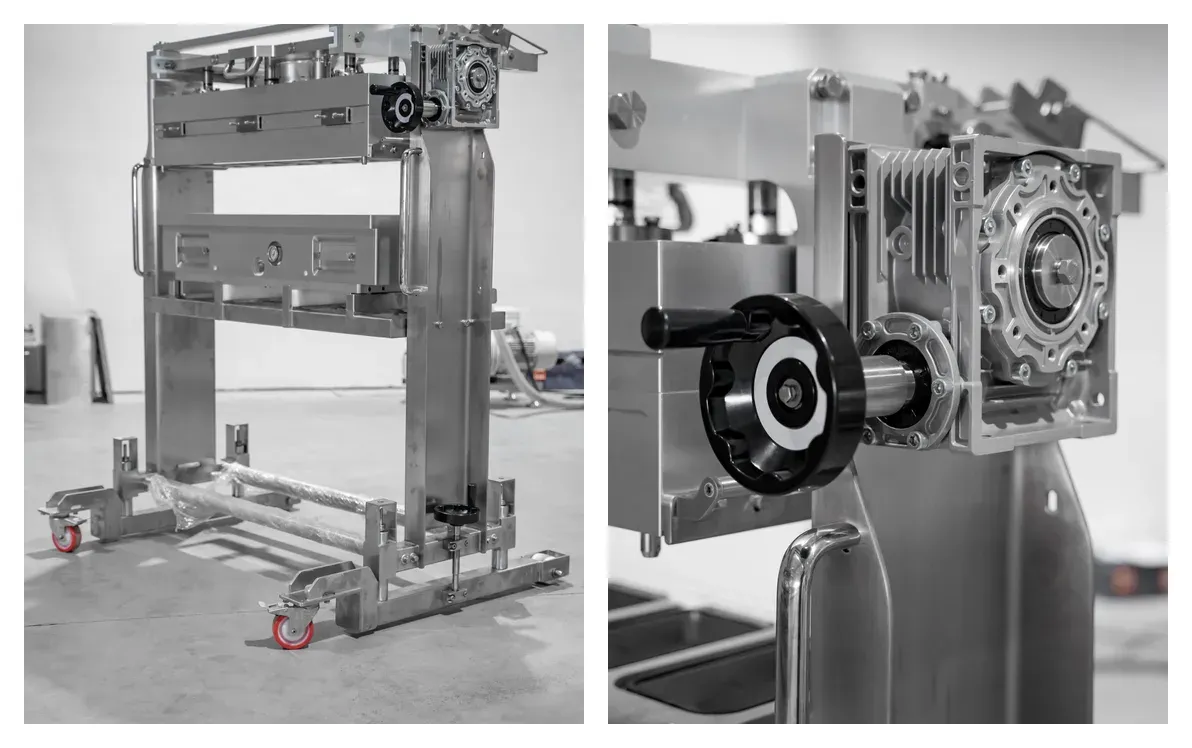

- Mold sizes can be freely changed.
- Compatible with a variety of tray materials, paper tray, aluminum tray, foam tray, etc.
Parameter
| TA-350 | TA-360 | |
|---|---|---|
| Tray Size | Max 350×250mm | Max 760×380mm |
| Tray Height | 10-120mm | 10-120mm |
| Speed | Up to 12 Cycles/Min (4 trays per cycle = 48 trays/min) | 10 Cycles/Min (6 trays/cycle, 3600 trays/h) |
| Sealing Width | 150-350mm | 150-350mm |
| Power | 380V 50Hz 5kW | 380V 50Hz 18kW (incl. 7.5kW vacuum pump) |
| Air Pressure | 0.6-0.8 MPa | 0.6-0.8 MPa (≈600L/min) |
| Dimension | 2200×1100×1600mm | 3630×950×2030mm |
Capacity & Filling Volume depends on the product status and filling weight.
