MR RD Series

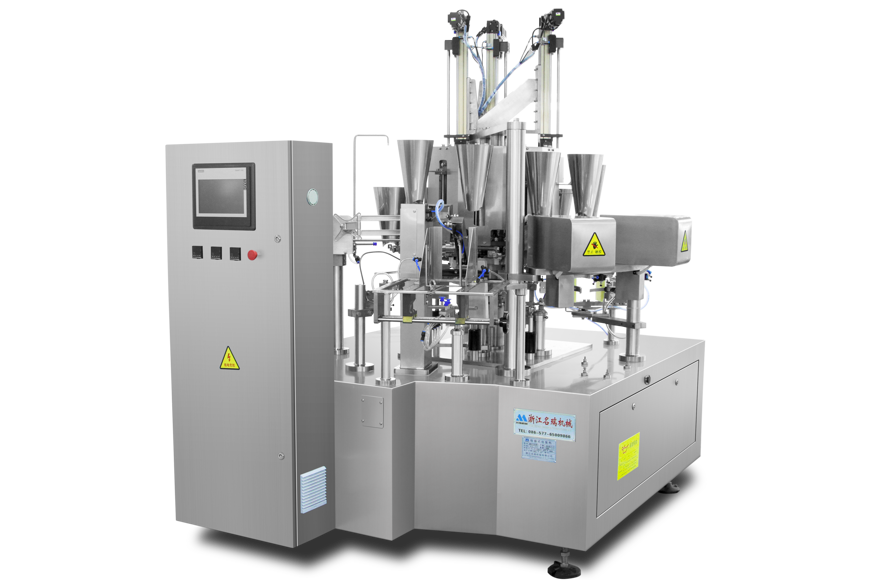

Flexible Bag-in-Bag Packaging Machine
Flexible Bag-in-Bag Packaging Machine
Capacity Up To 40 BPM
Bag Width 80 – 200mm / 3.1 – 7.9in
Filling Volume 500 – 2500g
Bag Length ≤ 350mm / 13.8in
The packaging system consists of bag feeding packaging machine, working platform, electronic scale and elevator.
Fast packaging and stable performance.
Multi-station feeding, solve the problem of small package into large package.
Features
- The packaging system consists of bag feeding packaging machine, working platform, electronic scale and elevator.
- Fast packaging and stable performance.
- Multi-station feeding, solve the problem of small package into large package.
- At a reasonable cost, innovative solutions to various packaging problems.
- The machine uses prefabricated bags with perfect packaging patterns, high and good sealing quality, thus, the product quality and grade are greatly improved.
Parameter
| MR10-201RD | MR10-250RD | |
|---|---|---|
| Capacity | up to 40 bags/min | up to 40 bags/min |
| Filling Volume | 500 – 2500g | 500 – 2500g |
| Weight | 1550kg | 1550kg |
| Dimension | 2200 * 1500 * 2200mm | 2200 * 1500 * 2200mm |
| Compress Air Requirement (supply by user) | ≥ 0.6m³/min (supply by user) | ≥ 0.6m³/min (supply by user) |
| Bag Width | 80 – 200mm / 2 – 7.9in | 120 – 250mm / 4.7 – 9.8in |
| Bag Length | ≤ 350mm / ≤ 13.8in | ≤ 350mm / ≤ 13.8in |
Capacity & Filling Volume depends on the product status and filling weight.
