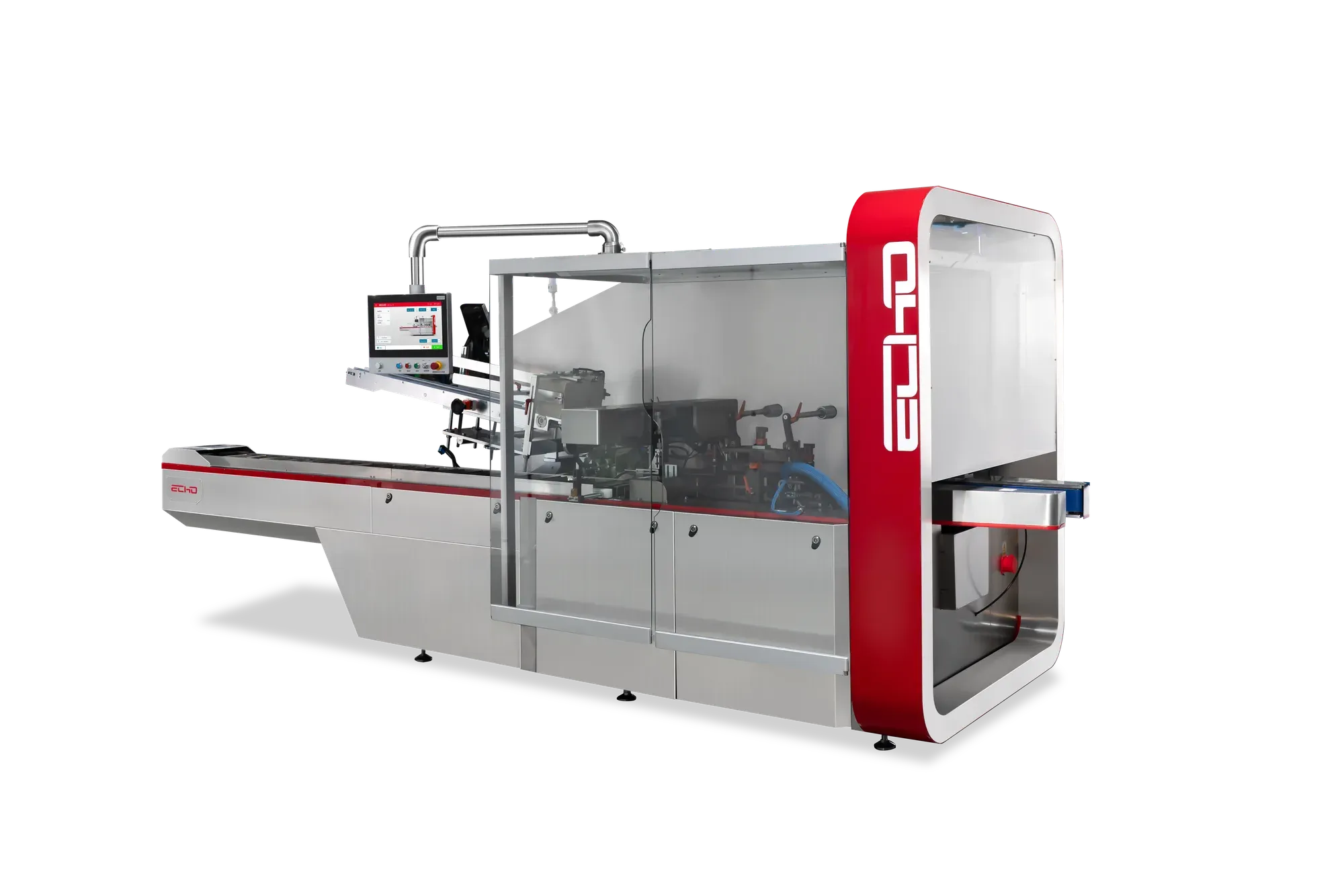

AC Series
Automatic Cartoning Machine
Fully Automatic Cartoning Machine
Capacity 30 – 80 Cartons/Min
Carton Size (L×W×H) (70–350) × (60–200) × (20–90) mm
Power Supply 380V, 3-Phase, 50Hz
Total Power 1.5 kw
Our fully automatic cartoning machine is engineered for the modern production floor — delivering high-speed performance, flexible compatibility, and built-in data connectivity across food, pharmaceutical, cosmetics, and daily chemical industries.
Features
- End-to-End Automation in One Machine — From automatic carton erecting and product insertion to leaflet folding, batch coding, and carton sealing, the entire packaging sequence is completed in a single continuous process. The machine achieves a running speed of 30–80 cartons per minute, with a wide carton size range of (70–350) × (60–200) × (20–90) mm. All parameters are customizable to match your specific production requirements.

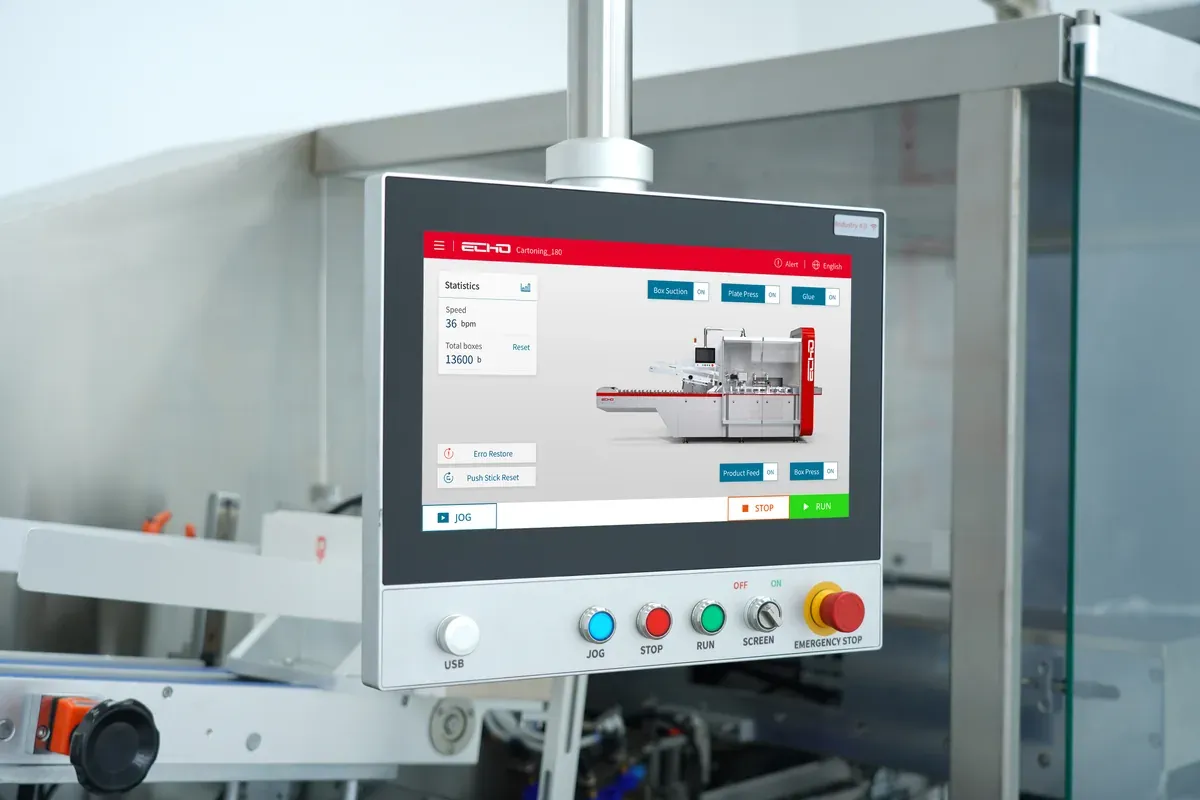

- Intuitive "Smartphone-Style" Interface — A flat design hierarchy dramatically reduces the learning curve for new operators. Familiar, touch-friendly controls mean your team is up and running in minimal time, with no lengthy training required.
- Minimalist Visual Design — A clean, decluttered interface built on a flat design language. Every element is purposeful, reducing visual noise so operators can focus on what matters: production performance and quality output.
- Intelligence-Ready Architecture — Equipped with integrated wireless data transmission hardware, the machine is ready for real-time OEE (Overall Equipment Effectiveness) monitoring straight out of the box, delivering instant performance insights and seamless integration into your factory's digital management system, with no additional retrofitting required.
- Broad Industry Compatibility — Designed to serve food, health supplements, pharmaceuticals, cosmetics, hardware, and consumer goods, with customization options available for non-standard carton formats and special product specifications. Finished product packaging pass rate consistently above 99%.
Parameter
| Specification | |
|---|---|
| Running Speed | 30 – 80 cartons / min (Depending on type of products) |
| Carton Size Range (L×W×H) | (70–350) × (60–200) × (20–90) mm |
| Power Supply | 380V, 3-Phase, 50Hz (Customized on request) |
| Total Power | 1.5 kw |
| Air Consumption | 20 m³/h (≥0.6 MPa) |
| Machine Dimensions (L×W×H) | 4600 × 1700 × 2000 mm |
| Machine Weight | 1,800 kg |
| Applicable Industries | Food / Pharma / Cosmetics / Daily Chemical / Hardware |
All specifications are customizable based on actual production requirements. Please contact us for details.
Capacity & Filling Volume depends on the product status and filling weight.
