MR8S Series
Double Bag Feeding Premade Pouch Packaging Machine

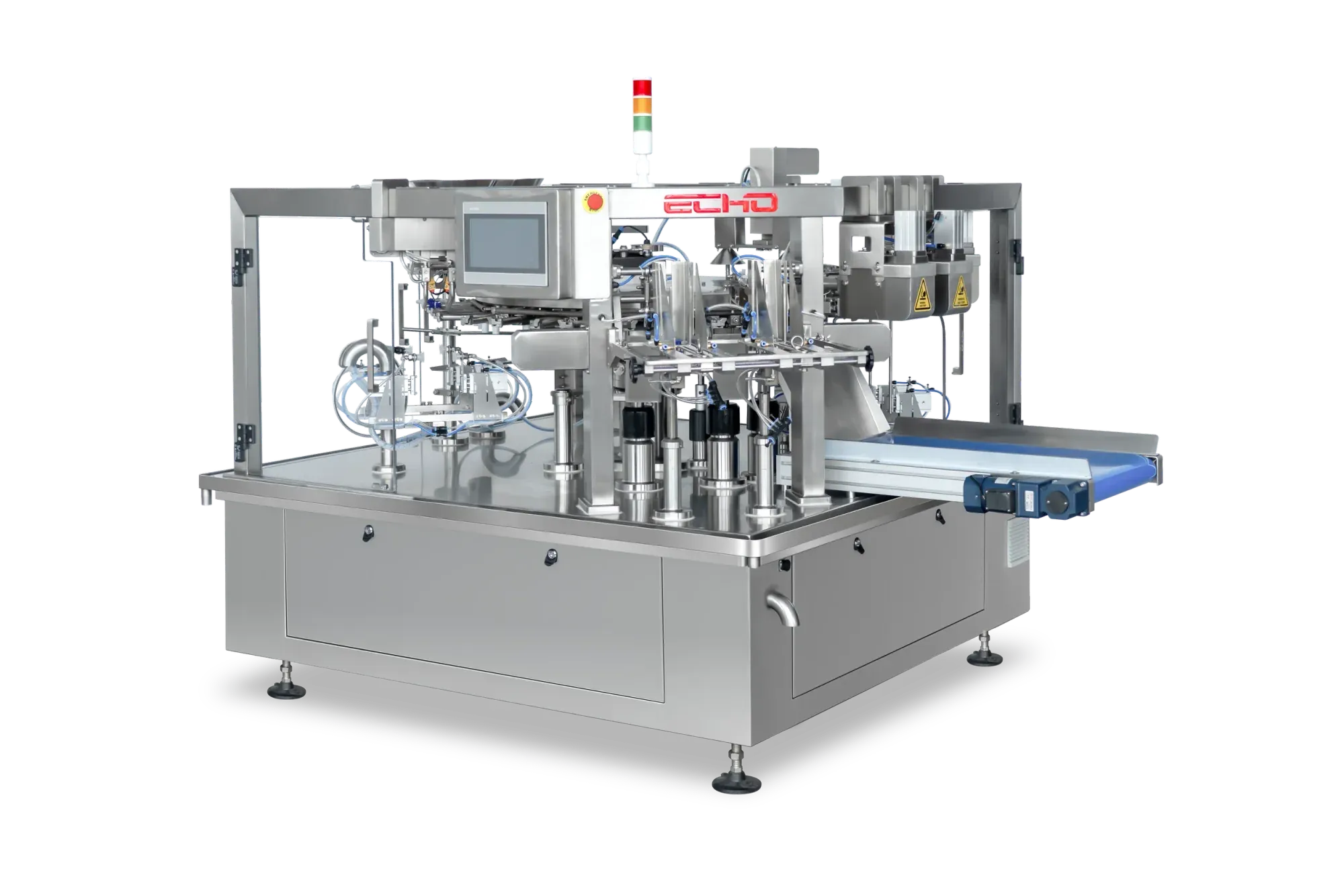

MR8S-100 / MR8S-160 Double Bag Feeding Rotary Premade Pouch Packaging Machine
Speed 80 – 150 Bags/Min
Bag Width 55 – 160 mm
Bag Length 60 – 350 mm
Power Supply 380V, 3-Phase, 50Hz
The MR8S-100/160 is a double bag packaging machine developed for large-scale production of small granule products. It has two bag magazines, and the control system switches between them: when one magazine runs empty the other takes over, so the machine does not stop for reloading. Compared with traditional single-magazine models, production efficiency is increased by more than 40%. It suits seasonings, tea leaves, nuts and other small granules that need continuous high-speed packaging.
Features
- Dual Bag Feeding — Two bag magazines are switched by the control system, so the machine keeps running while the other magazine is reloaded. Compared with traditional single-magazine models, production efficiency is increased by more than 40%, and the usual downtime for changing bags is gone.
- Simpler Bag Size Change — Standard models need a skilled operator. On the MR8S-100 the bag size change is simplified, so the technical threshold is lower and daily operation is more efficient.
- Imported Indexer — The machine uses original Japanese indexers, which give better stability and a longer service life than regular machines.
- Brand Components — Festo pneumatics, Schneider Electric systems and Igus engineering bearings from Germany.
- Two-Step Bag Opening — The mechanical bag arm opens the bag in two steps, partial opening first and then inflation, which greatly improves the bag opening success rate.
- Anti-Contamination Sealing — The push-pull sealing design blocks product from entering the bag seal area, which prevents part corrosion and keeps the sealing area clean.
Parameter
| MR8S-100 | MR8S-160 | |
|---|---|---|
| Bag Size (W×L) | (55 – 100) × (60 – 300) mm | (80 – 160) × (100 – 350) mm |
| Speed | 80 – 150 bags/min | 60 – 120 bags/min |
| Weight | 2,000 kg | 2,090 kg |
| Machine Size (L×W×H) | 1770 × 1770 × 1450 mm | 2150 × 2100 × 1500 mm |
| Power Supply | 380V, 3-Phase, 50Hz, 7KW | 380V, 3-Phase, 50Hz, 13.2KW |
All specifications are customizable based on actual production requirements. Please contact us for details.
Capacity & Filling Volume depends on the product status and filling weight.
