Auxiliary Equipment
Screw Conveyor
Y100/180
Auger conveyor can be used to lift powder and help them fill. Auger filling and auger conveyor constitute powder machine. It suit for coffee milk etc powder. This powder filling machine special design for filling powder materials like washing powder, grape powder, milk powder etc. It can be fit with the packing machine to form a complete production line.
Features
- Dual-motor design with independent control of feeding motor and vibrating motor for precise material handling.
- Adjustable vibration and amplitude on a separated material box for easy loading and unloading, with reinforced vibrating motor for stable operation.
- Reversible spiral discharging and gate discharge on the feeding tube enable easy cleaning — the entire screw assembly can be quickly removed.
- Compatible with packing machines to form a complete production line.
Parameter
| Y100 | Y180 | |
|---|---|---|
| Feeding Speed | 3m³/h | 5m³/h |
| Volume of Material bin | 100ml | 180ml |
| Total Power | 815w | 1565w |
| Feed Box Size | 800 × 800 × 1200mm | 900 × 900 × 1000mm |
| Distance From Discharge Port to Ground | 1800mm | 1800mm |
| Power | 3p 380v | 3p 380v |
Height can be designed as required.

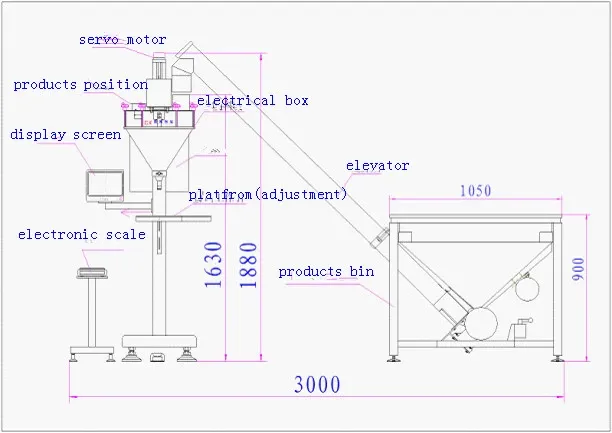

Machine Structure
Contains Auger Filler and Conveyor Screw.
