EC-420/520/720
Vertical Form Fill & Seal Machine
Vertical Form Fill & Seal Machine / Vertical Packing Machine
Capacity Up To 60 BPM
Bag Width 50 – 350mm / 2 – 13.8in
Measuring 150 – 6000ml
Bag Length 80 – 400mm / 3.1 – 15.8in
Vertical Form Fill & Seal Machine(VFFS or Vertical Packing Machine) adopts advanced technology, which is a high-quality & high-capability automatic packaging machine. It includes automatic feeding, weighing, bagging, sealing, date printing and output.
Features
- With feeding and metering equipment, feeding, metering, filling, sealing, date printing, charging (exhaust), counting, finished product conveying and other functions all in one.
- It can stock ten types of rollstock, simple to change variety.

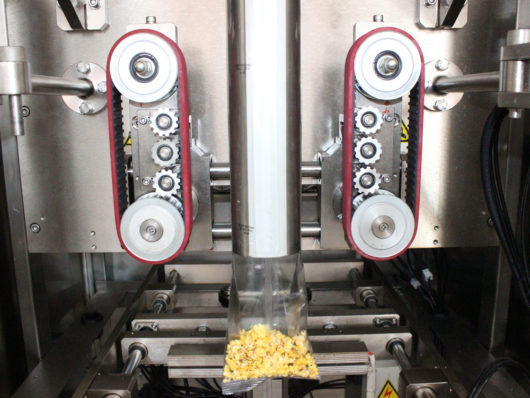

- Servo motor drawing film, position accurately.
- PLC computer system, the function is more stable, adjusting any parameters doesn't require stopping the machine.
- Independent temperature control system, precision reaches ±1℃, suitable for various mixed films, PE film packing material.
Parameter
| EC-420 | EC-520 | EC-720 | |
|---|---|---|---|
| Bag Width | 70-200mm / 2.8-7.9in | 120-280mm / 4.7-11in | 200-350mm / 7.9-13.8in |
| Bag Length | 80-300mm / 3.1-11.8in | 80-350mm / 3.1-13.8in | 80-400mm / 3.1-15.7in |
| Measuring Range | 5-1000ml | 50-2000ml | 150-6000ml |
| Filling Speed | 30-60bags/min | 20-40bags/min | 15-30bags/min |
| Film Width | Max 420mm | Max 520mm | Max 720mm |
| Total Power | 220V 3kw | 220V 3.2kw | 220V 3.5kw |
| Weight | 450kg | 500kg | 650kg |
| Dimension | 1200×900×2000mm | 1300×1000×2200mm | 1400×1100×2400mm |
| Packing Type | 3-side seal, 4-side seal, pillow bag, gusset bag | 3-side seal, 4-side seal, pillow bag, gusset bag | 3-side seal, 4-side seal, pillow bag, gusset bag |
Capacity & Filling Volume depends on the product status and filling weight.
Bag Style
Working Principle
The animation shows the film path from the roll through the forming tube, the filling station and the sealing jaws.
- Liquid —— Detergent, Yellow rice wine, Soy sauce, Rice vinegar, Juice, Tomato paste, Peanut paste, Fruit paste, Chili sauce, Bean sauce, etc.
- Granule —— Crystal MSG, Granule medicine, Capsule, Seeds, Raw Chemistry material, Sugar, Chicken essence, Melon seed, Nuts, Pesticides, Fertilizer, Feed, etc.
- Powder —— Flavoring, MSG, Milk powder, Glucose, Washing powder, Raw chemistry material, White sugar, Pesticides, Fertilizer, etc.
